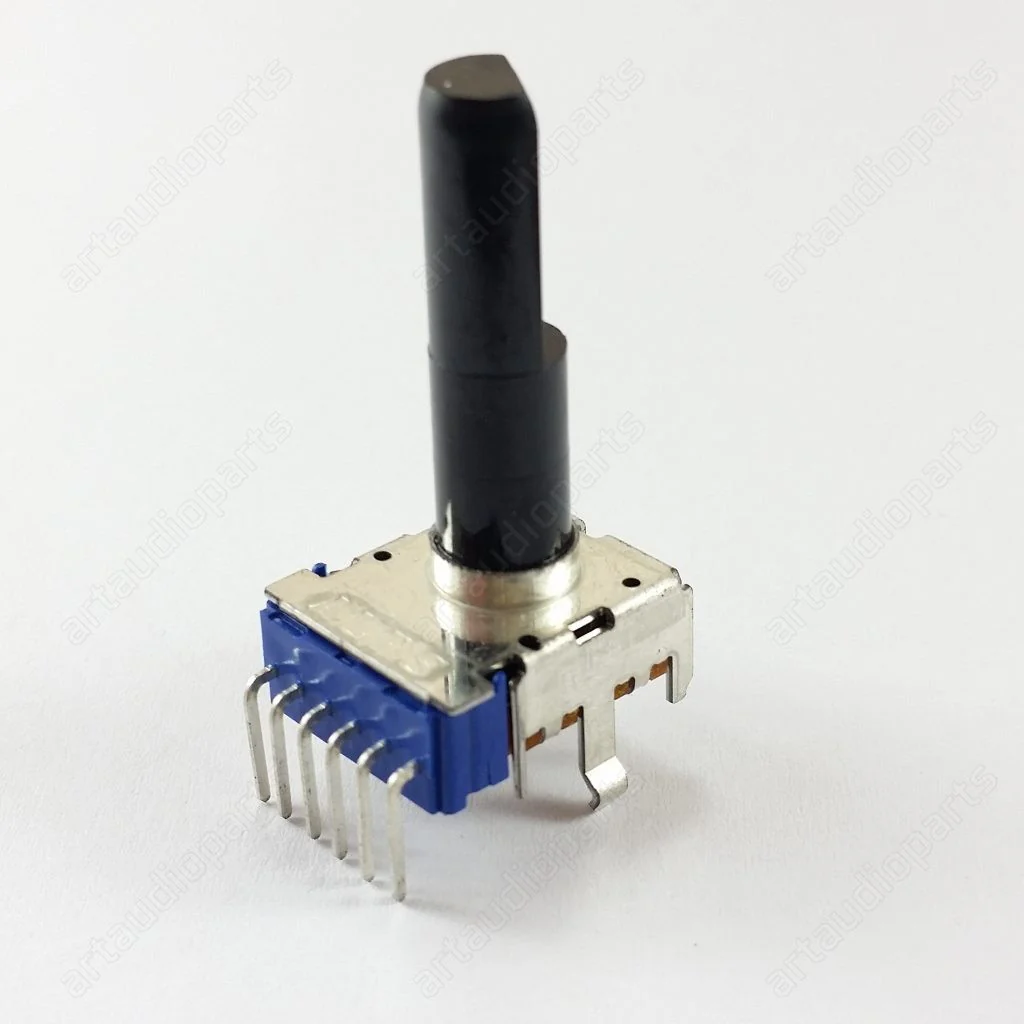

Rotary Pot aux phones effect for Yamaha EMX-5000-68S-88S-860ST GF-16-24 MX-12-20

Rotary Pot for Yamaha:

• EMX 5000-12/20:

  • AUX1(CH17/18, 19/20)
  • AUX2(CH17/18, 19/20)
  • EFFECT1(CH17/18, 19/20)
  • EFFECT2(CH17/18, 19/20)
  • ST SUB OUT
  • ST SUB IN1 (ST, AUX1, AUX2)
  • ST SUB IN2 (ST, AUX1, AUX2)
  • 2TR IN
  • EFFECT1 (AUX1, AUX2)
  • EFFECT2 (AUX1, AUX2)
  • Phones

• EMX 68S:

  • LEVEL (Ch5-Ch8)
  • EFFECT (Ch5-Ch8)
  • MONITOR (Ch5-Ch8)
  • AUX IN
  • 2 TR IN (Main, Monitor)
  • EFFECT RTN (Main, Monitor)
  • MASTER MAIN

• EMX 88S:

  • LEVEL (Ch5-Ch8)
  • EFFECT (Ch5-Ch8)
  • MONITOR (Ch5-Ch8)
  • AUX IN
  • 2 TR IN (Main, Monitor)
  • EFFECT RTN (Main, Monitor)
  • MASTER MAIN

• EMX 860ST:

  • LEVEL (Ch7-Ch8)
  • EFFECT (Ch7-Ch8)
  • MONITOR (Ch7-Ch8)
  • MAIN(STEREO MASTER)
  • MAIN(AUX IN, TAPE IN, EFFECT)

• GF 24/12:

  •  ST(AUX RETURN1/2,TAPE IN)
  • C-R MONI LEVEL
  • PHONES LEVEL

• GF 16/12:

  • ST(AUX RETURN1/2,TAPE IN)
  • C-R MONI LEVEL
  • PHONES LEVEL

• GF 12/12:

  • ST(AUX RETURN1/2,TAPE IN)
  • C-R MONI LEVEL
  • PHONES LEVEL

• MX 12/6:

  • RETURN (AUX1,AUX2,ST)
  • D. EFFECT (AUX1,AUX2,ST)
  • C-R/PHONES:TAPE IN
  • C-R/PHONES control

• MX 20/6:

  •  RETURN (AUX1,AUX2,ST)
  • D. EFFECT (AUX1,AUX2,ST)
  • C-R/PHONES:TAPE IN
  • C-R/PHONES control

Part No: VZ610900
