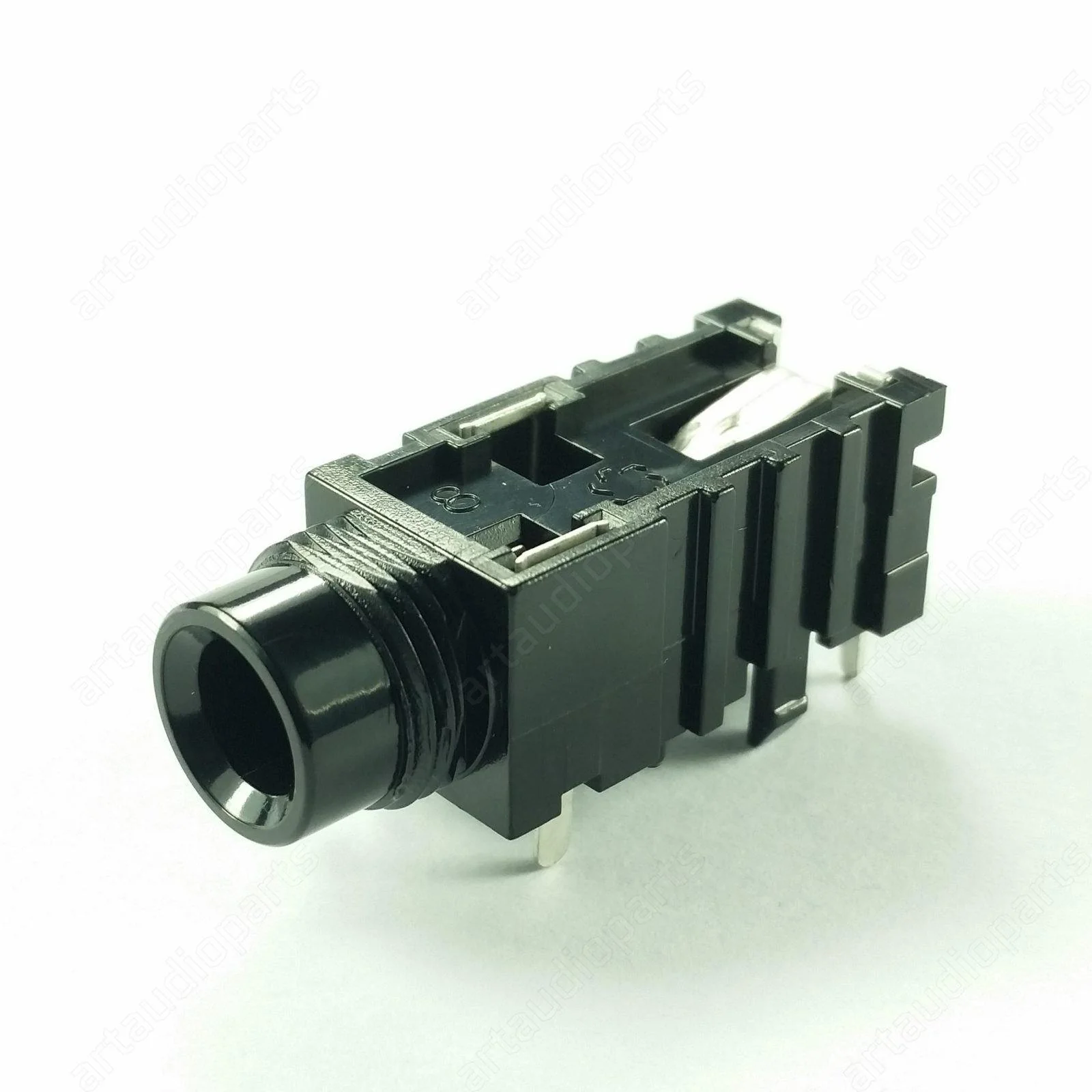

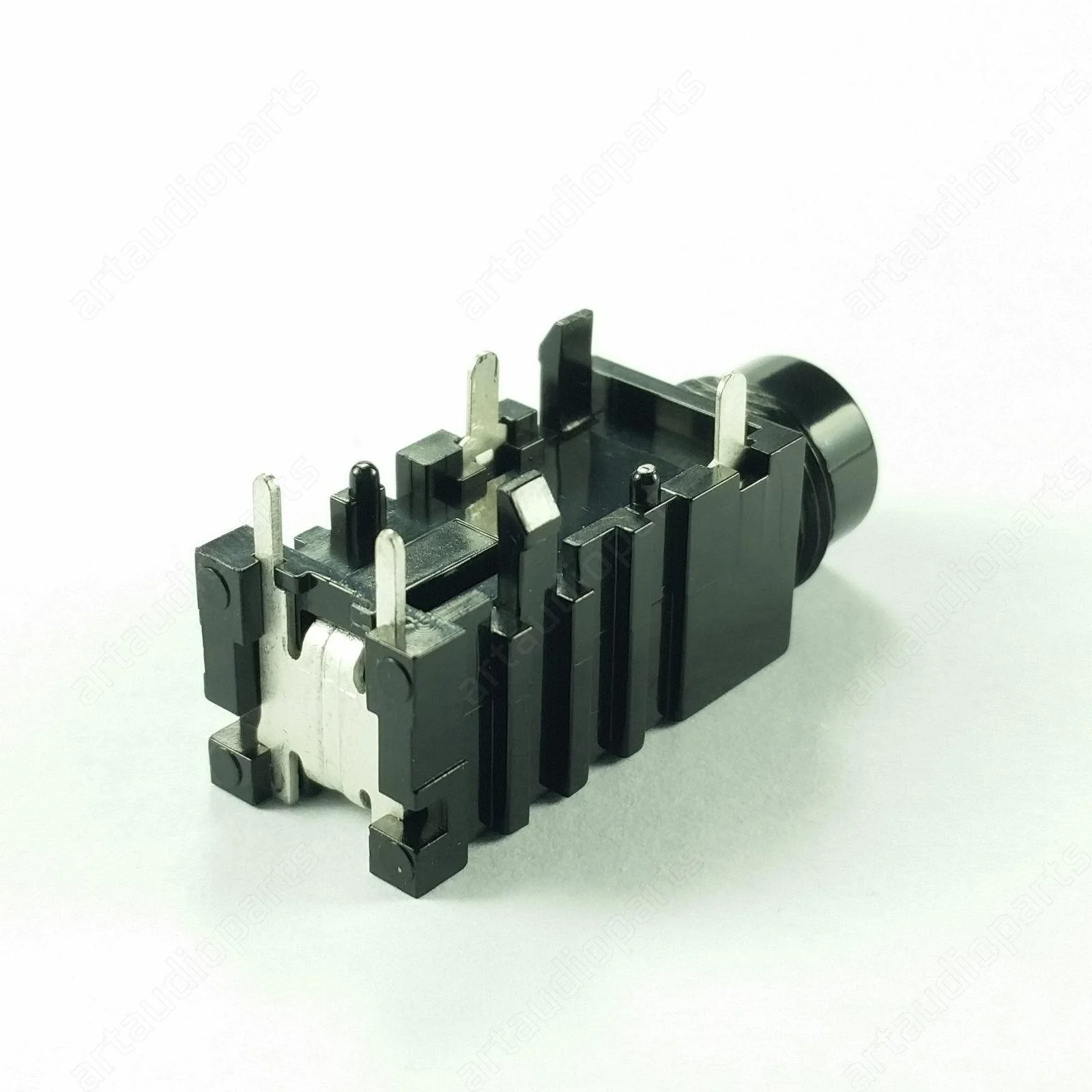

VS056300 Phone Jack for Yamaha 01V96 02R96 CVP-109/CVP-107 DM2000 DTXTREME

Phone Jack for Yamaha:

•  01V96
  • OMNI OUT 1-4 (BAL)
  • MONITOR OUT L (BAL)
  • MONITOR OUT R (BAL)

• 02R96
  • 2TR IN ANALOG 1 L
  • 2TR IN ANALOG 1 R
  • INPUT (17,19,21,23)
  • INPUT (18,20,22,24)
  • OMNI OUT 1-8
  • STUDIO MONITOR OUT L
  • STUDIO MONITOR OUT R
  • CTR.ROOM MONITOR OUT L
  • CTR.ROOM MONITOR OUT R

• CVP-109/CVP-107
  • EXP. PEDAL

• DM2000
  • 2TR IN ANALOG 1 L
  • 2TR IN ANALOG 1 R
  • INSERT OUT
  • OMNI OUT 1-8
  • STUDIO MONITOR OUT L
  • STUDIO MONITOR OUT R

• DTXTREME
  • FOOT SW
  • 1.SNAPE, 2.TOM1 3.TOM2, 4.TOM3, 5.TOM4, 6.RIDE, 7.CRASH, 8.HI-HAT, 10/9.KICK 12/11, 14/13, 16/15

• P-80
  • PHONES

• P-90
  • PHONES

• PSR-9000
  • FOOT PEDAL(VOLUME)



Part No: VS056300
